What Is a Lunar Lander? Learn How the Apollo Lunar Module Was Designed

Written by MasterClass

Last updated: Oct 2, 2020 • 4 min read

When Neil Armstrong became the first human to walk on the moon in 1969, the NASA astronaut emerged from a specially made piece of aeronautical engineering—the Eagle lander. This lander, part of the Apollo 11 lunar module, is the most famous example of a type of spacecraft known as a “lunar lander.”

Lunar landers are designed to conquer the unique conditions on the moon, where a lack of atmosphere and intense temperatures make touching down and staying operational a challenge.

Save

Share


Chris Hadfield Teaches Space ExplorationChris Hadfield Teaches Space Exploration

The former commander of the International Space Station teaches you the science of space exploration and what the future holds.

Learn More

What Is a Lunar Lander?

A lunar lander is a type of spacecraft designed to land on the surface of the moon. It’s also known as a moon lander.

4 Famous Lunar Landers in History

Humans have been building lunar landers since the 1950s, in anticipation of the first moon landing. Some prominent examples include:

  1. Apollo Lunar Module (LM). This is the most well known lunar lander. Originally called the Lunar Excursion Module (LEM), it was developed as part of the United States’ Apollo program to take humans to the moon—which it did successfully for the first time in 1969 with Apollo 11. The specific lunar module involved in the historic event was called the Eagle lander.
  2. LK Lander. The Soviet counterpart to America’s LM, the LK Lander (it stands for “lunniy korabl,” meaning “lunar craft”) was part of the USSR’s attempts at a lunar landing. It never reached the lunar surface, although several modules flew in Earth orbit.
  3. Surveyor spacecraft. These were robotic spacecraft that NASA sent to the moon from 1966 to 1968. Their goal was to test out soft landings ahead of the Apollo program’s manned moon missions.
  4. Project Morpheus. This more recent NASA project from 2010 to 2014 was geared at achieving autonomous flying, vertical takeoff, and landing (VTVL), and using a new, non-toxic propellant system based on methane and oxygen—meaning it could be potentially manufactured on the moon and Mars, as well as more safely on Earth.
Chris Hadfield Teaches Space Exploration
Dr. Jane Goodall Teaches Conservation
Neil deGrasse Tyson Teaches Scientific Thinking and Communication
Daniel Negreanu Teaches Poker

3 Essential Things a Lunar Lander’s Design Must Address

Every time humans have sent spacecraft to land on a body in the solar system—whether it was the moon, another planet, or an asteroid—it has come with a new set of challenges. In the case of lunar landing, aerospace engineers have to consider the following factors:

  1. The moon has high gravity compared to asteroids. This means the only method of liftoff and landing that has so far provided enough thrust has been with the use of rockets. The goal of all landers is to achieve a “soft landing,” meaning without damage to the vehicle.
  2. The moon has no atmosphere. Landers that have gone to Mars, Venus and Saturn’s moon Titan could use parachutes to descend, harnessing the atmosphere for aerobraking. For the moon, much more fuel is needed for the descent.
  3. The moon’s days are long. The lunar surface is in direct sunlight for a fortnight and then darkness for another two weeks. This results in extreme temperatures ranging from 260 F to -280 F, making it hard to protect the lander’s instruments.

MasterClass

Suggested for You

Online classes taught by the world’s greatest minds. Extend your knowledge in these categories.

Chris Hadfield

Teaches Space Exploration

Learn More
Dr. Jane Goodall

Teaches Conservation

Learn More
Neil deGrasse Tyson

Teaches Scientific Thinking and Communication

Learn More
Daniel Negreanu

Teaches Poker

Learn More

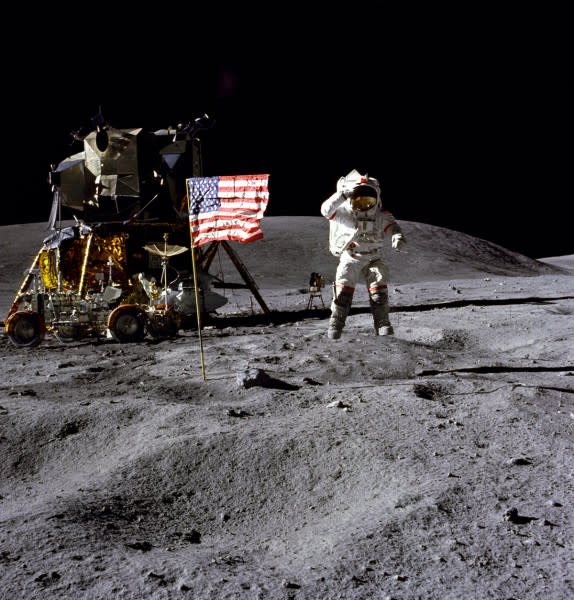

Person on moon with american flag

How Was the Apollo Lunar Module Designed?

Think Like a Pro

The former commander of the International Space Station teaches you the science of space exploration and what the future holds.

View Class

The craft involved in the Apollo 11 moon landing came out of a competition run by NASA in July 1962. In the midst of the “space race” where the U.S. and Russia vied to put the first human on the moon, NASA invited 11 companies to submit proposals to design the LEM.

The winning tender came from Grumman Aircraft. Their engineer Thomas J. Kelly led the project, starting with a design similar to another component of the Apollo spacecraft: its command and service module. It had a cone-shaped cabin atop a cylindrical propulsion section and folding legs.

The next iterations focused on saving weight and improving safety. Grumman removed the heavy seats, having the astronauts stand supported by cables and pulleys while piloting the module. They also swapped the large cockpit windows for smaller triangular ones. By April 1963, the design of the main components was locked in.

The LM’s first unmanned test flight was with Apollo 5 in 1968, while Apollo 10 was the first mission to take it into lunar orbit.

2 Components of the Apollo Lunar Module

Editors Pick

The LM is split into a two-stage design that corresponds to different needs in the landing mission. The upper section is known as the ascent stage and the lower section, the descent stage.

  1. The ascent stage contains the crew compartment, aft equipment bay, reaction control subsystem (RCS), and ascent engine for launching from the moon’s surface. The crew compartment also held environmental control and life support systems. The RCS has 16 thrusters arranged in two independent systems with their own propellant tanks for maneuvering in lunar orbit, but it can also draw fuel from the main propulsion system for ascent from the surface.
  2. The descent stage contains the landing gear and descent engine for lowering the craft to its landing site on the moon. The landing gear folds out after launch and is partly made of a crushable aluminum-honeycomb material to absorb the force of moon landing. There are four legs, one with a ladder and porch allowing astronauts access to the lunar surface. The last three Apollo missions (Apollo 15 to 17) also featured a lunar rover, the Lunar Roving Vehicle (LRV), folded into a corner of the descent stage.
